Maritime Signal Light Guns

Trident LED Aldis lamp, hand-held marine signal lamp
MARITIME / STANDARD

Trident

Our standard Maritime Signal Light Gun (SLG), designed for reliable ship-to-ship and ship-to-shore visual communication, with selectable Red, White, and Green LED signals. Designed to meet IMO MSC.95(72) performance standards for daylight signalling lamps under SOLAS Chapter V (independent testing in progress).

TECHNICAL SPECS
OUTPUT1,000 lm
PEAK90 kcd
POWER17.5 W
BEAM ANGLE5°
Polar Candela Distribution
MEASURED PHOTOMETRIC DATA — WALTEK

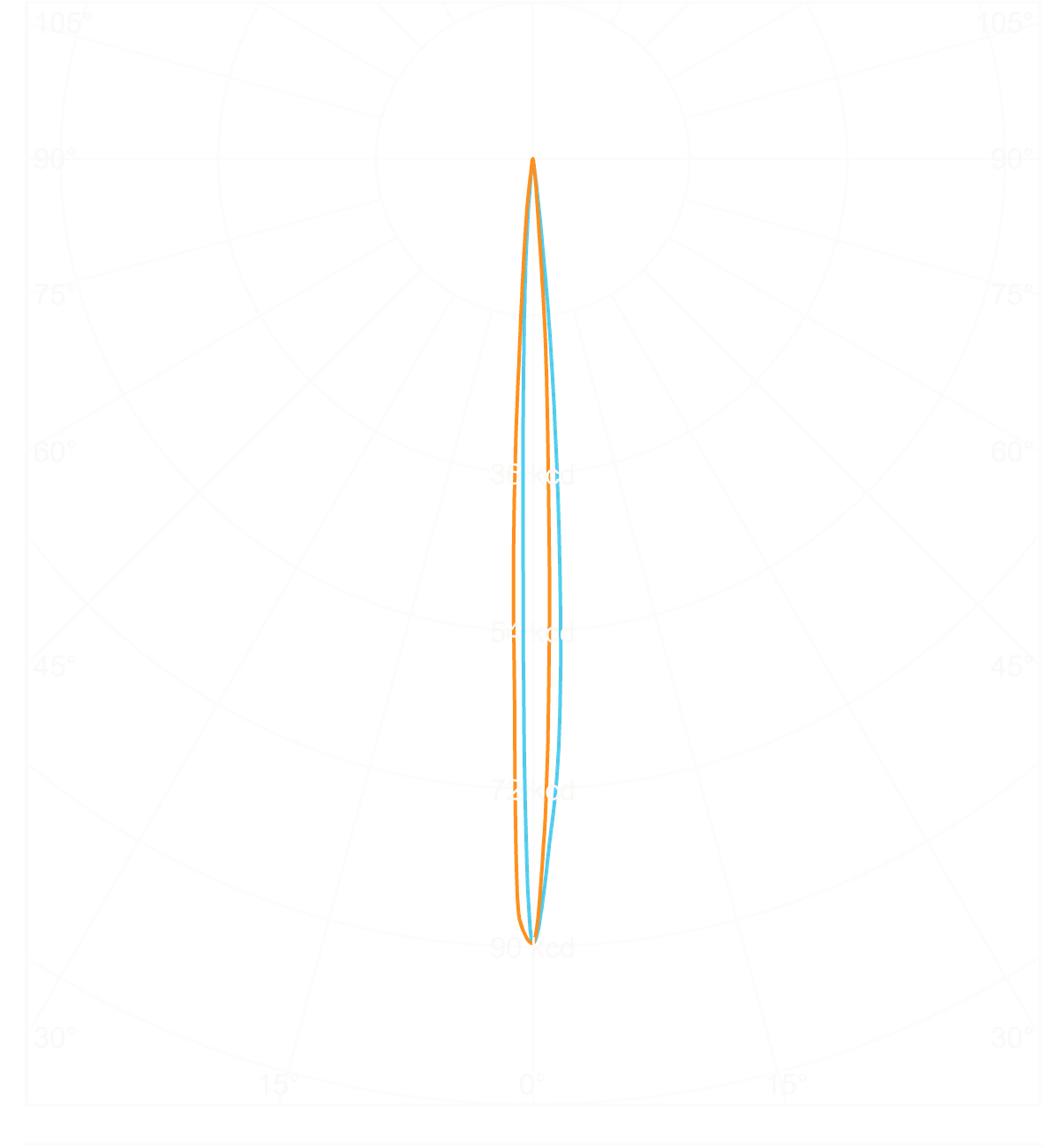

Polar candela distribution chart for the Trident white beam, horizontal and vertical planes through the beam centre
HORIZONTAL
VERTICAL
MARINE SIGNAL LAMP

Marine Signal Lamp and Aldis Lamp Replacement

The Trident is a hand-held LED marine signal lamp for ship-to-ship and ship-to-shore signalling from the bridge. It replaces the traditional Aldis lamp with a bright LED source that needs no bulb changes, and selectable red, white and green signals. A two-position trigger locks on for a steady beam or flashes manually for Morse code signalling.

Its waterproof IP67 design suits exposed bridge wings and open decks, and it runs from its own rechargeable battery, independent of the ship's power supply. A desk cradle and charger keep it ready on the bridge.

ON THE BRIDGE

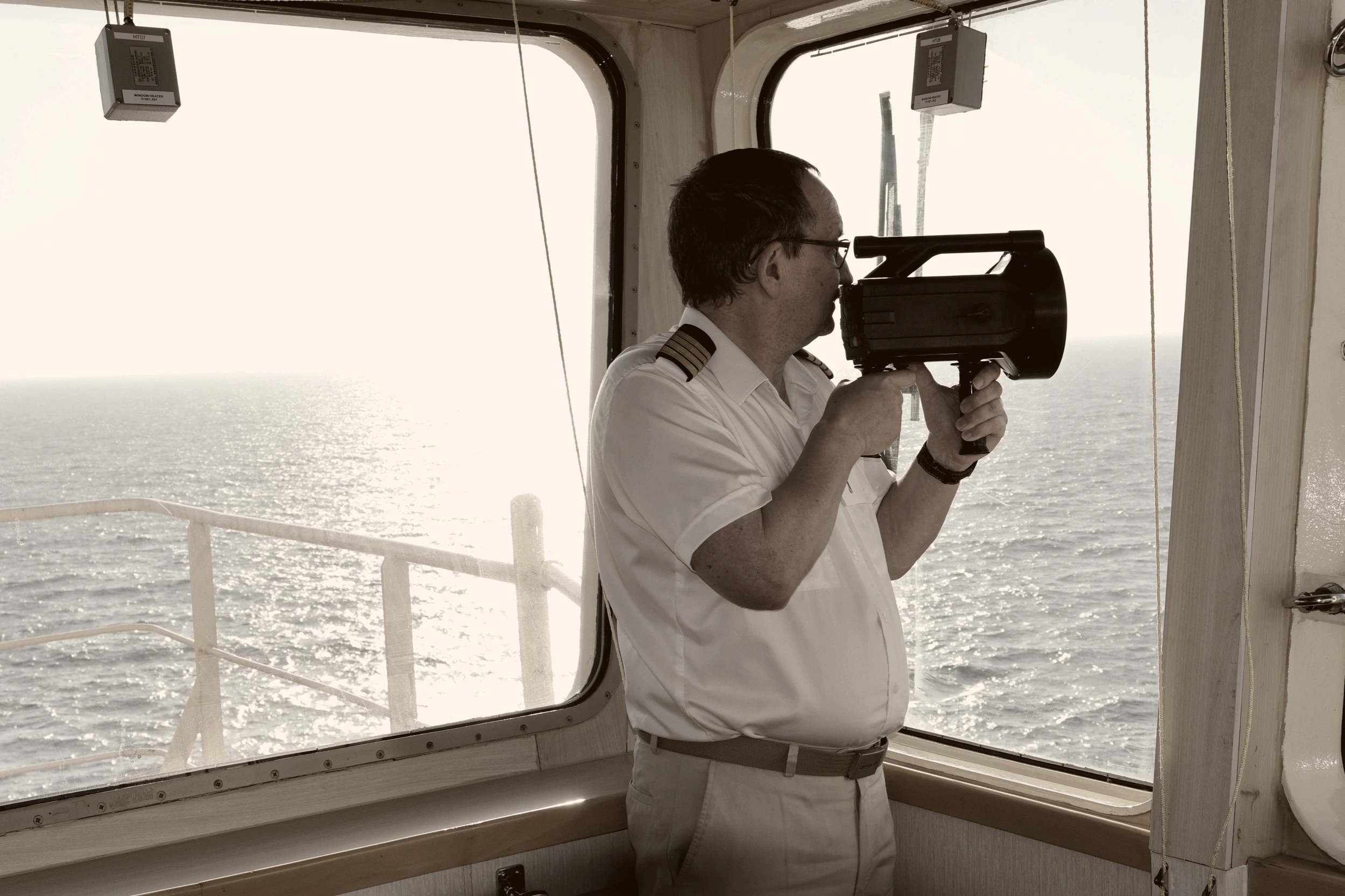

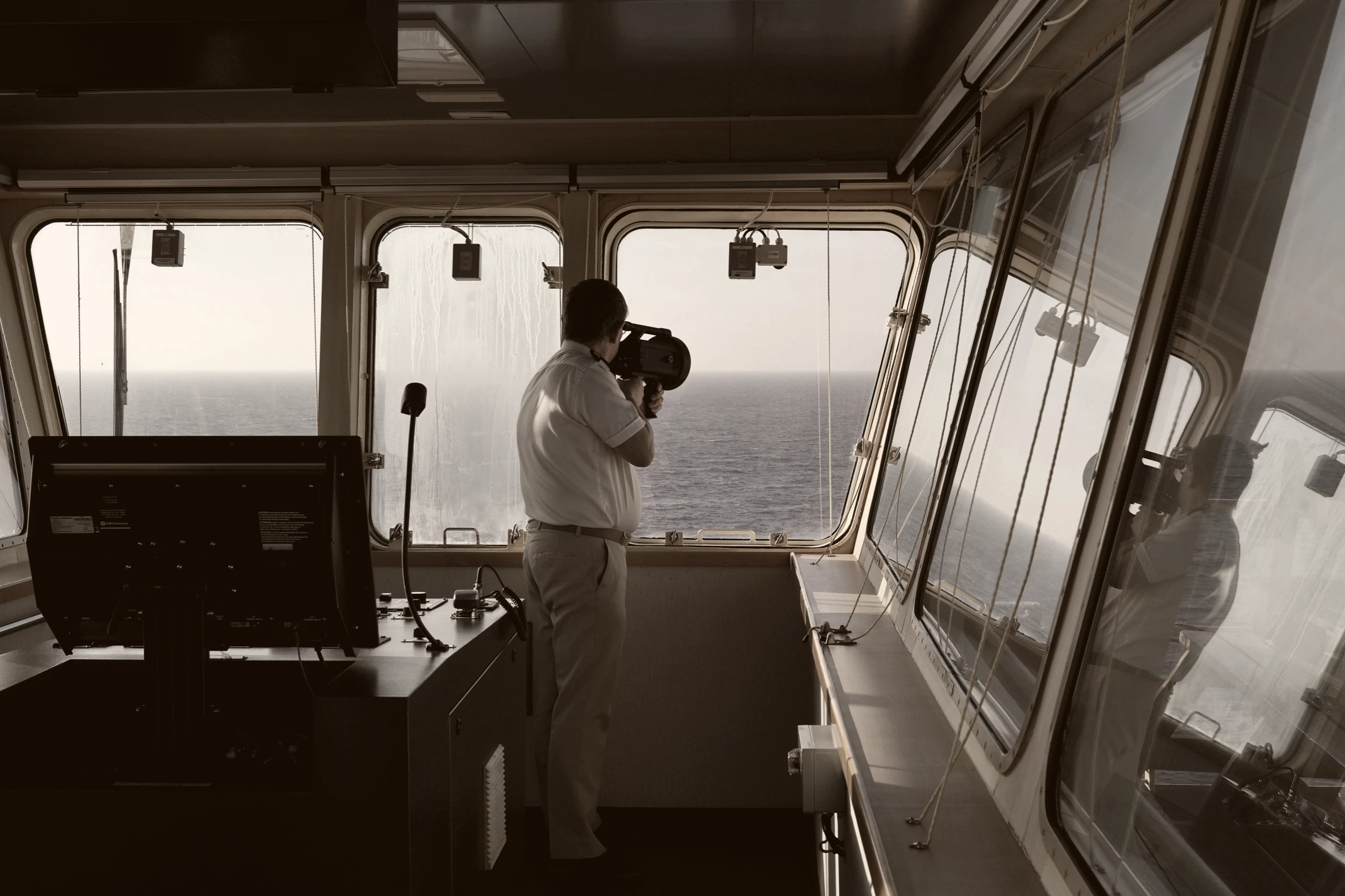

Marine Signal Lamp in Use
